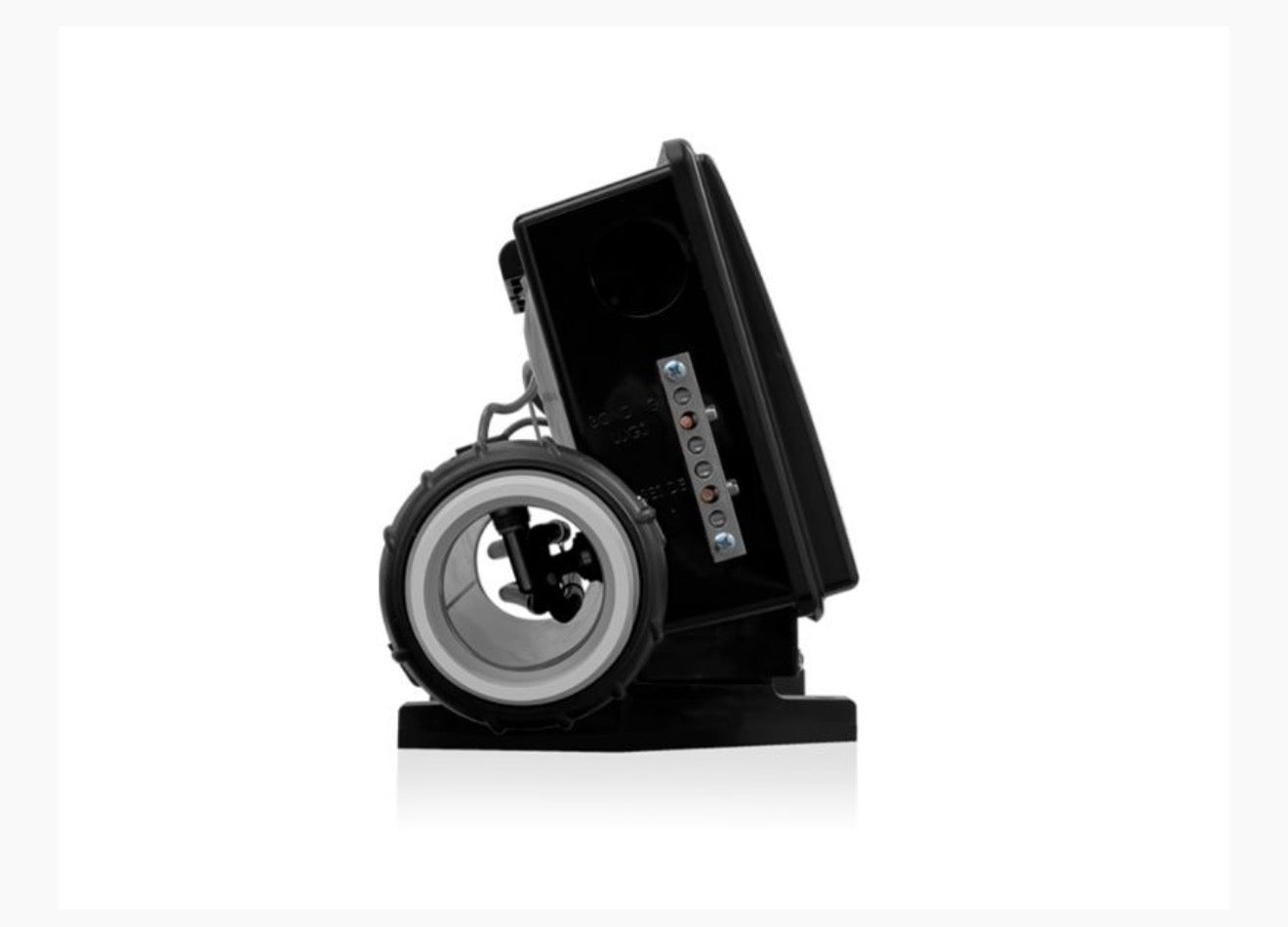

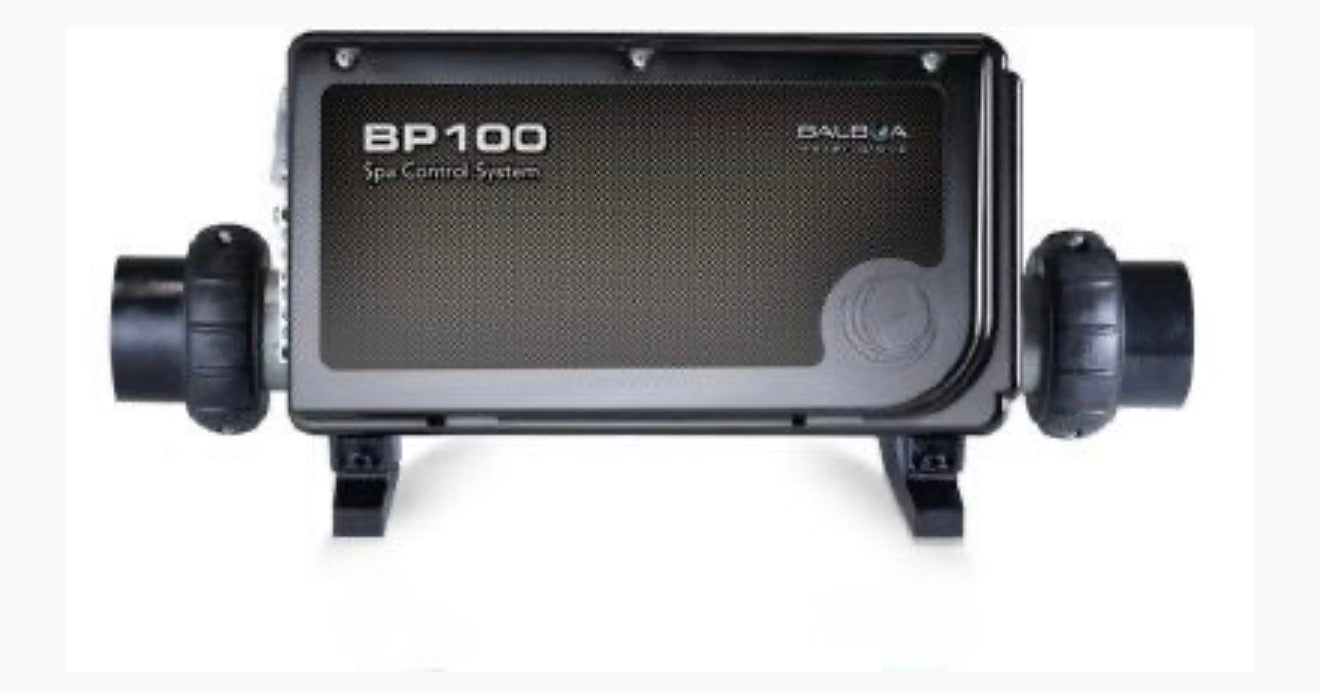

CW Control System BP100G2

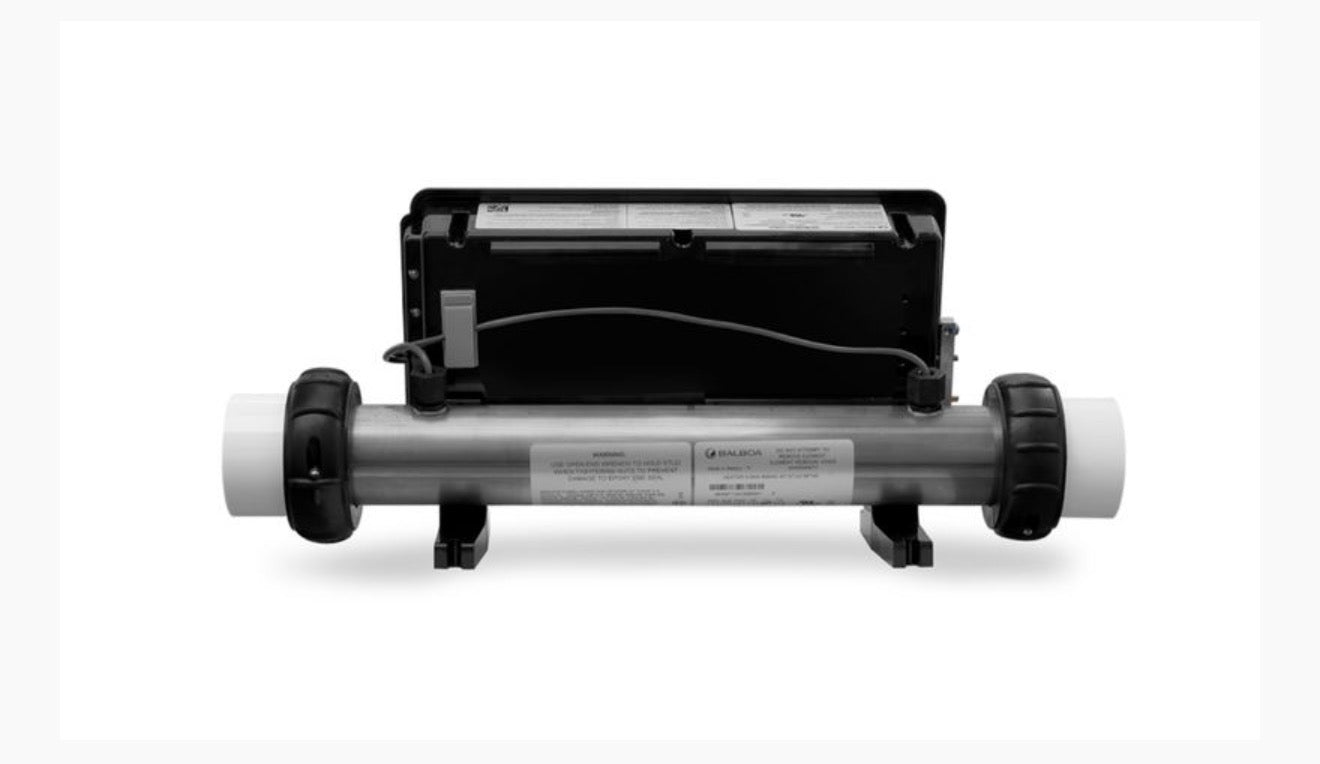

BP Pack with 4.0kw Incoloy Heater (4358)

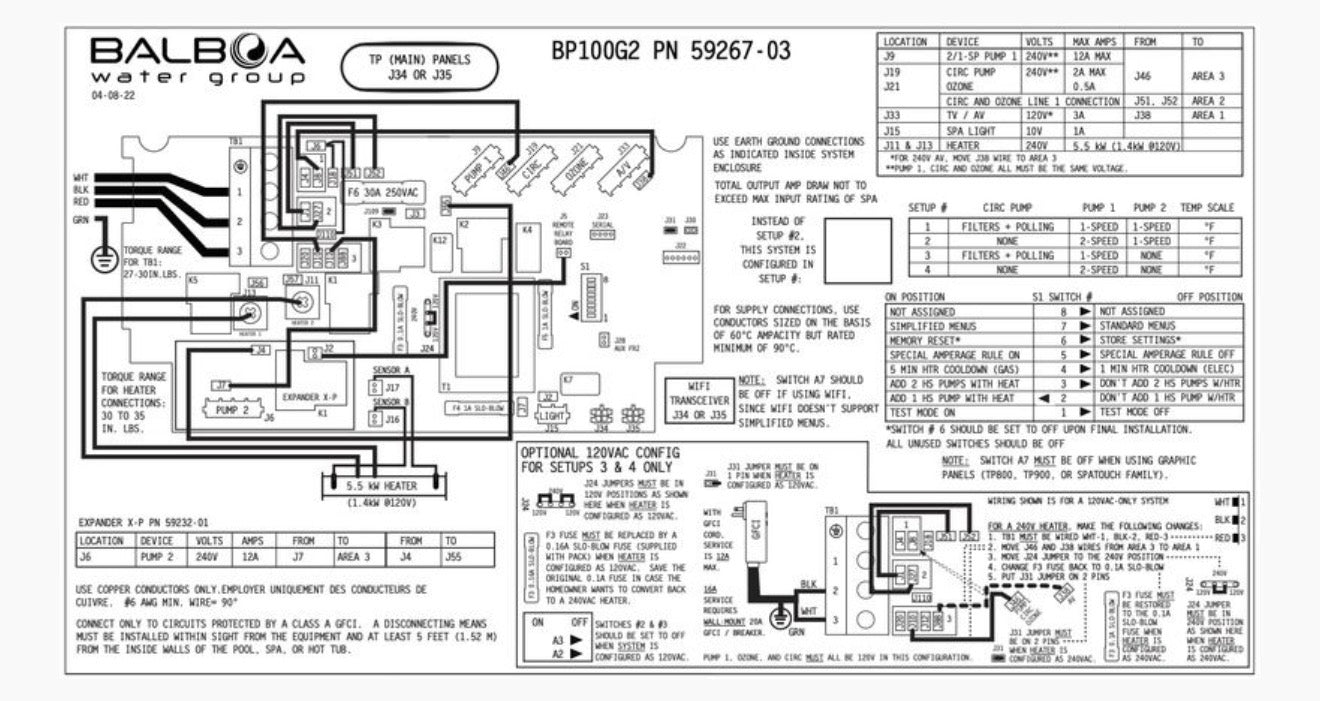

Control system BP100G2 used in domestic Starlight 1 pump and 2 pump models Q4 2023-2024. Works with all Spa Touch and TP control panels (TP950: SKU 50584-05, TP800: SKU 50408-06, TP700: SKU 57278-02, TP600: SKU 55676-14, TP260: SKU 57335). 120v wall plug application for 1 pump setups only, in this setup the heater, circ, ozone, and pump 1 must run on 120v.

• Power Requirements: 240VAC, 50/60Hz, 48A, Class A GFCI, Circuit Breaker 60A Max, 4 Wires Hot, Hot, Neutral, Ground.

• Dimensions: L: 16.90", W: 6.46", H: 8.32"
• Dip Switch Settings: 1 Pump models: A2 up. 2 Pump models: A3 up.

120v Wall Plug Setup

• Power Requirements: 120/240VAC, 50/60Hz, 16/40A, Class A GFCI Wall Mount Breaker. (For setups 3 and 4 only.)
• If using a GFCI cord, the breaker is 15A and the service is limited to 12A.

Replacement Parts and Wifi Upgrade:

• Wifi Capabilities with Control My Spa System (Sold Separately): SKU 59303
• Heater Replacement: SKU 58426R16 (4.0kw)
• Temp Sensor Replacements: SKU 32016

Replacement fuses and locations:
