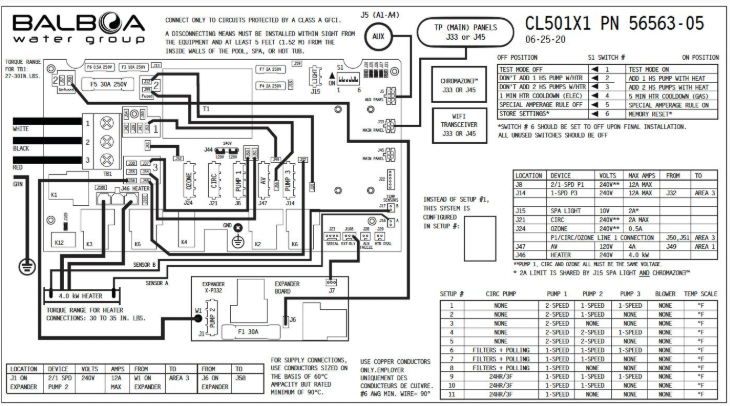

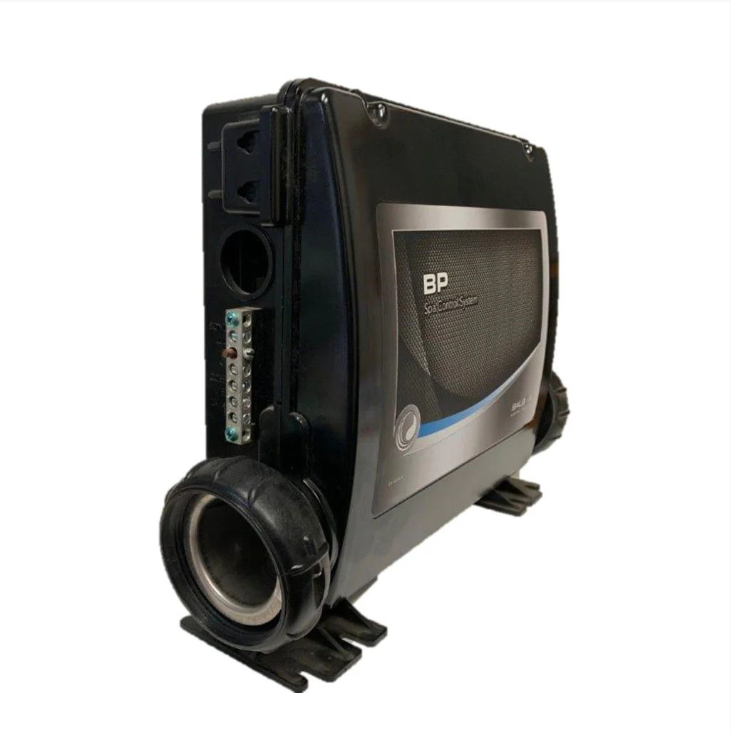

Control System CL501X1 SKU 56563-05

BP Pack with 4.0kw Titanium Heater (4279)

Control system CL501X1 used in 2014-Current domestic 1, 2, and 3 pump Northwest, Starlight, Evergreen, and Beachcraft models. Replaces (SKU: 56563-03 and 56563-04). Also used in Birch Bay, Divine, and select Starlight models. Works with all Spa Touch and TP control panels (TP950: SKU 50584-05, TP800: SKU 50408-06, TP700: SKU 57278-02, TP600: SKU 55676-14, Spa Touch 2: SKU 57384, Spa Touch 3: SKU 57368). Note TP200 and TP500 control panels can only be used with up to 2 pumps.

• Power Requirements: 240VAC, 50/60Hz, 48A, Class A GFCI, Circuit Breaker 60A Max, 4 Wires Hot, Hot, Neutral, Ground.
• Dimensions: L: 17", W: 4.80", H: 11.50"
• Standard Dip Switch Settings: Starlight models A2 up, all other models A3 up.

Replacement Parts and Wifi Upgrade:

• Wifi Capabilities with Control My Spa System (Sold Separately): SKU 59303
• Circuit Board Replacement: SKU 56946-01
• Expander Circuit Board: SKU 59097
• Heater Replacement: SKU 55625R16 (4.0kw)
• Temp Sensor Replacements: SKU 32016

Replacement fuses, functions, and locations:
